| Kit Summary | |
|---|---|
| Rear End Axle: | OEM |
| Axle Offset: | 0.00 |
| Mount Type: | Radial |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 14.25 |
| Min Wheel Diameter Req'd*: | 18 |
| *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram | |
| UPC Number | |
|---|---|
| UPC | 889545031850 |
|

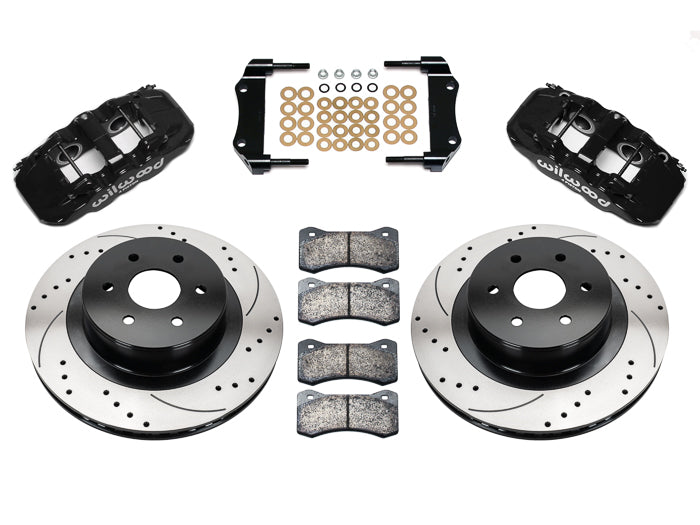

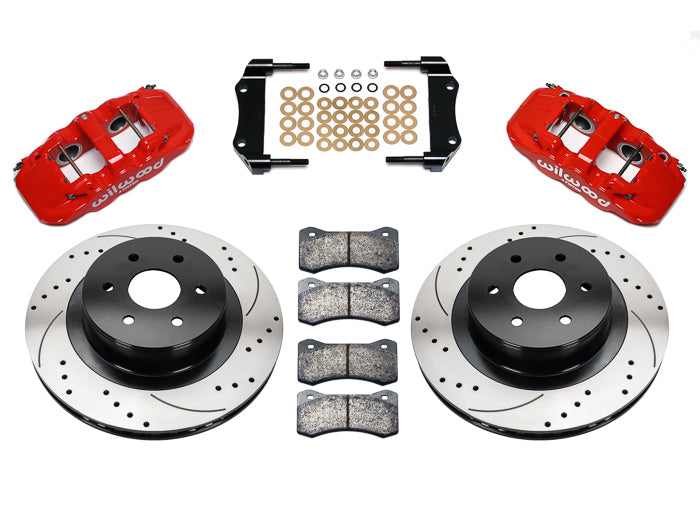

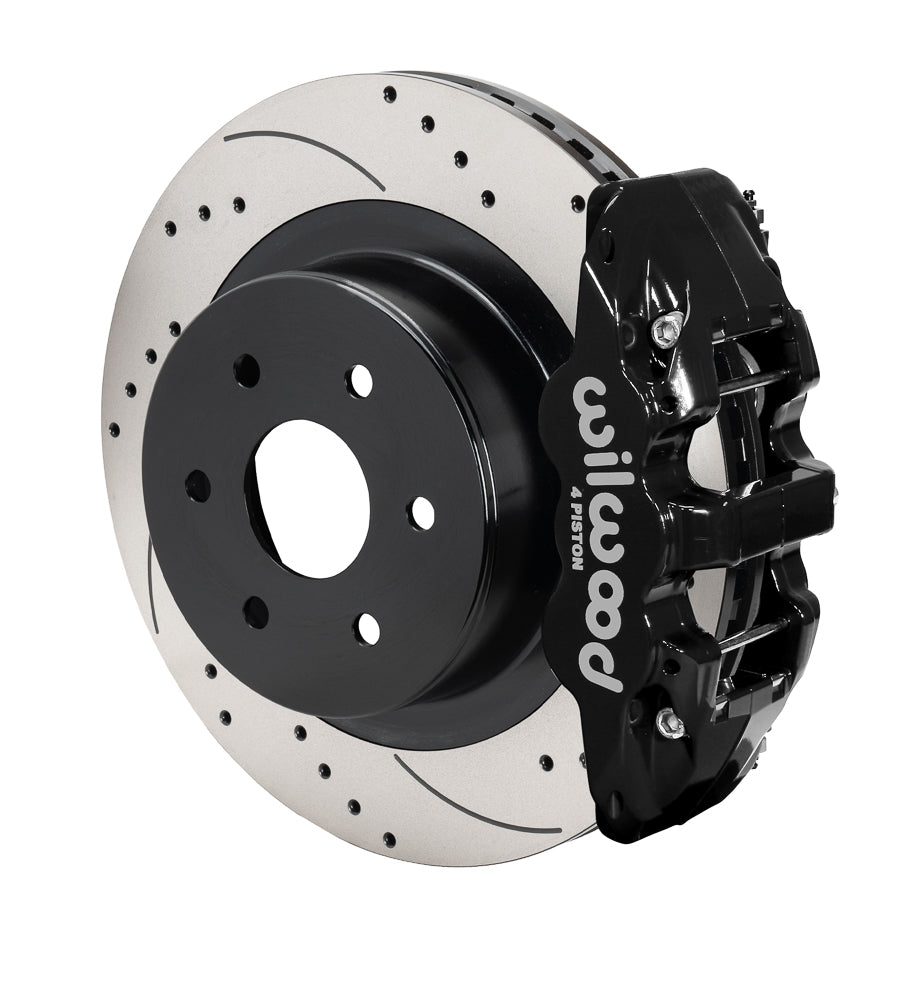

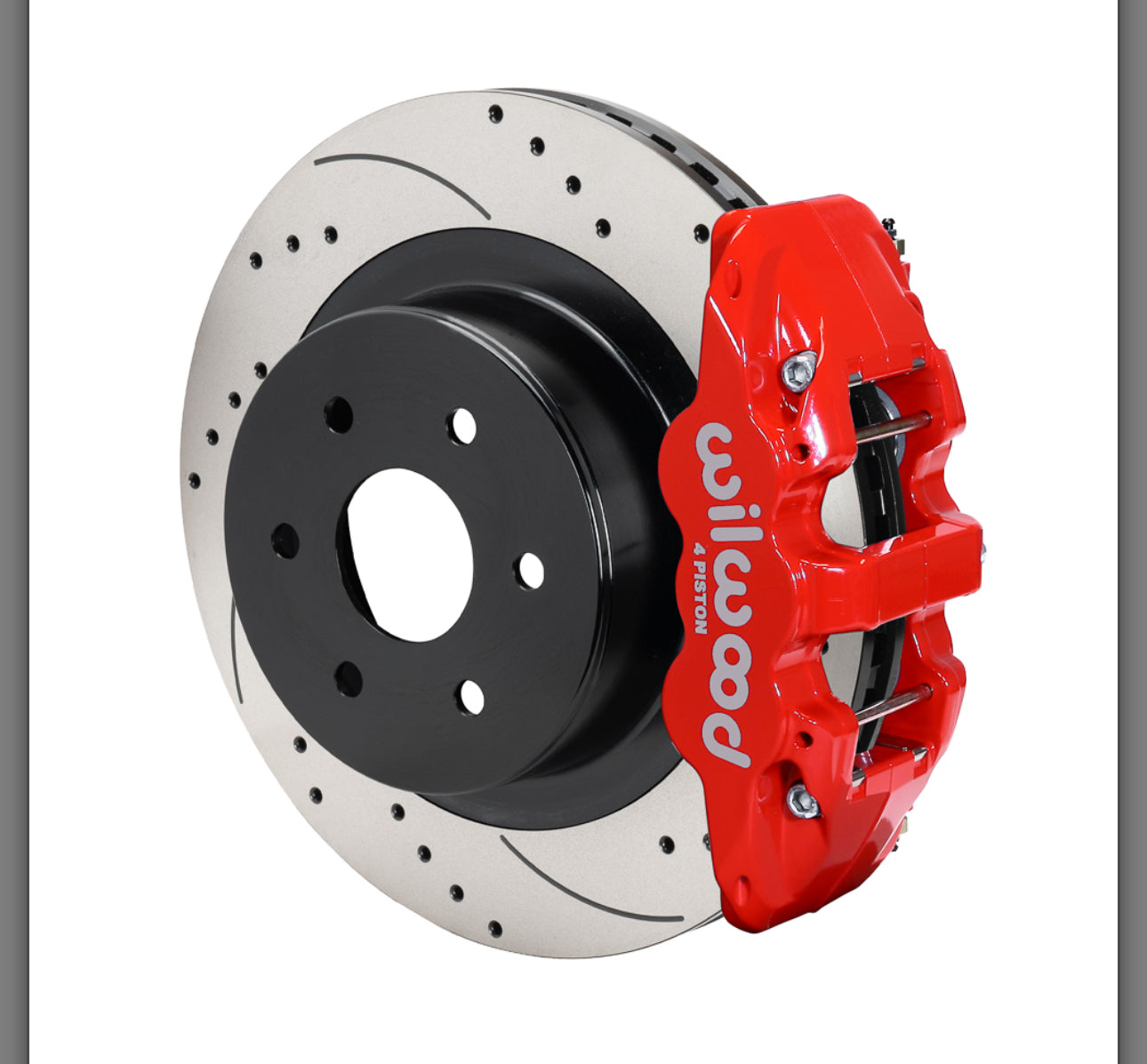

AERO4 Big Brake Truck Rear Brake Kit
AERO4 Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the AERO4 calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW.
Fitment & Installation Details
AERO4 Big Brake Truck Rear Brake Kit Assembly Schematic
AERO4 Big Brake Truck Rear Brake Kit Assembly Schematic
| Rear End / Axle Housing Flange | |
|---|---|
Confirm The Configuration! OEM Flange |
Confirm Offset Measurement! Axle Flange Cross-Section |
| Search Rear Kits By Rear End/Axle Offset | |
 |
AXLE OFFSET: 0.00 Check the diagram above and verify this measurement. This kit may be available in several different offsets. |
|
|
|
| Wheel Clearance | Assembly Instructions |
|---|---|
 Wheel Clearance Diagram
|
| Notes |
|---|
|
1. For OE rears with single piston calipers. |
